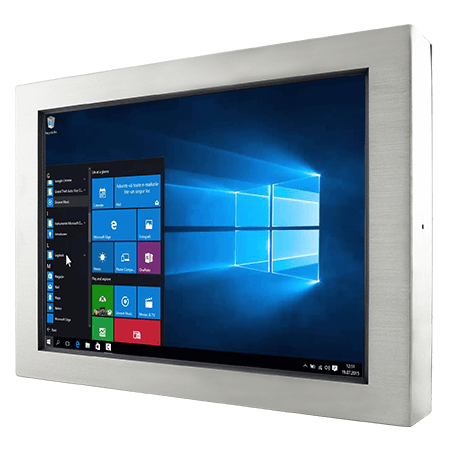

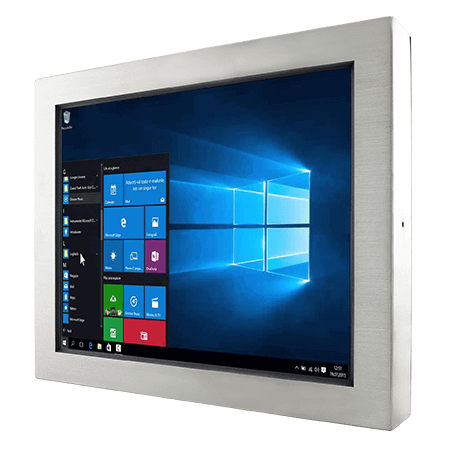

Winmate’s Stainless Product Series Upgraded to SUS316/ AISI316. SUS316/ AISI316 for maximum resistance to corrosion for a lifetime of durability. Upgrade to SUS316/AISI316 Stainless Steel Winmate has upgraded the casting material of its Stainless product series from SUS304/AISI304 stainless steel to SUS316/AISI316 stainless steel. While the type 304 offers the standard corrosion resistance, the 316 stainless contains a significant amount of molybdenum, resulting in vastly superior corrosion resistance to rust, chlorides and acids, giving a lifetime of durability. Such upgrade allows users to clean the stainless steel more often using stronger cleansers and detergents with little worry of damage, making the machine ideal for environments with strict hygiene and cleanliness standards, including Food and Beverage industry, Chemical sector, and any areas with high salt levels or exposed to alkalis and acids. The Stainless product series are engineered to withstand challenging environments, undergoing rigorous testing to ensure safety and top performance. Apart from the SUS316/ AISI316 stainless steel housing, these products feature water and dust proof design with Ingress Protection rating IP69K/ IP67/ IP65 to deliver the best solution for environments with hygienic considerations. Highlight includes: Various Size, Touchscreen and CPU Configurations Winmate provides various configurations for display sizes from 10.1” to 42”, touchscreen types such as PCAP multi-touch screen and resistive touchscreen, and stainless PPC processors including Intel® Core™ i5-7200U Kaby Lake and Intel® Celeron® Bay Trail-M N2930 for users to choose from depending on their intended applications. IP69K/ IP67/ IP65 Rated Enclosure The Stainless lineups are designed to be an operator control HMI for applications with high hygienic requirements such as the food and beverage or chemical processing industries. All the models are rated to at least IP65 water and dust proof. The IP69K-rated members are built to withstand extensive wash downs with corrosion resistance against cleaning agents, especially against close-range high-pressure up to 30 Bar, high temperature up to 80°C wash downs. Models with Conduit Pipe/Pushbuttons to Meet Industry-Specific Needs Winmate Stainless Steel PPC/display is available with a conduit pipe or pushbuttons to satisfy versatile industrial demands. The conduit pipe is waterproof to give an additional layer of protection for the peripheral cables connected to the device. Stainless B Series with User-Defined Function Buttons As for the models with pushbuttons, the flat buttons on the front panel are user-defined function keys directly connecting to the sensors for the fast response when it comes to authorized user control. The front panel also contains a large emergency button to provide an intuitive and quick way for the operators to shut down the process when an emergency situation occurs, preventing them from wasting too much time navigating through HMI screens. Stainless B Series with User-Defined Function Buttons M12 Waterproof Connectors Winmate utilizes M12 waterproof connectors as I/O ports to ensure that the devices can be installed in the harsh industrial environment and to make the Stainless product series impervious to dust and water with certain limits. True Flat Design No compromise between performance and aesthetics. The stainless product series boasts elegant, edge-to-edge design to give a sleek look while being easy to maintain and clean. For more details and questions about Winmate’s Stainless product series, please contact us at sales@winmate.com.tw. Display Size 15 inches Touch / Glass Resistive Touch Screen Protection Glass Without Touch Function (Optional) Resolution 1024x768 Panel Brightness 300 nits Contrast Ratio 2000:1 View Angles 88,88,88,88 Active Area 304.1x228.1 mm System Specification Processor Intel® Core™ i5-7200U (3M Cache, up to 3.10 GHz) Intel® Core™ i5-7300U (3M Cache, up to 3.50 GHz) Memory 1 x SO-DIMM, DDR4 2133 MHz, 4GB 8GB (Optional) 16GB (Optional) Storage 1 x M.2 2242 SSD 64GB M.2 2242 SSD up to 512GB (Optional) Ethernet controller Intel® Ethernet Controller I211-AT + Intel® Ethernet Connection I219-LM Security TPM 2.0 Operating System Windows 10 IoT Enterprise (Optional) Linux Ubuntu 18.04 (Optional) WLAN Support (Optional) BT Support (Optional) Mechanical Dimension 378 x 301 x 60 mm Mounting VESA Mount Yoke Mount Enclosure Stainless Housing Cooling System Fanless design Environment Operating Humidity 10% to 90% (non-condensing) Operating Temperature 0~45°C Storage Temperature -20~60°C IP rating IP65 Certification Certification CE, FCC IO Ports USB Port 1x M12 waterproof connector for 2 x USB2.0 Serial Port 1 x M12 waterproof connector for RS232 LAN 1 x waterproof Giga LAN RJ45 connector Indicator 1 x LED Indicator for power 1 x LED Indicator for storage Power Input 1 x M12 waterproof connector for 12V DC Control Button 1 x Power Button 1 x Reset Button Accessory Accessory 100~240V AC to DC Adapter with waterproof connector Power Cord External USB cable with waterproof connector External COM cable with waterproof connector External LAN cable with waterproof connector Waterproof caps Driver CD & Manual VESA screws Power Power Rating 12V DC (M12 type) Completely sealed, waterproof, corrosion-resistant and extremely rugged solution ready for food processing and pharmaceutical industry Completely sealed, water-resistant, and extremely rugged. If hygiene is your company's highest priority, the Winmate stainless steel IP69K/ IP65 computer is perfect for the food processing and pharmaceutical industry. Winmate waterproof industrial PCs have a smooth, completely-sealed housing made from high-quality SUS 316/ AISI 316 grade stainless steel widely known because of its resistance to pitting in corrosive environments. The smooth surface and edge-to-edge design will not harbor bacteria and keep your solution ready for FDA approval. The screen of these machine operator control panels features a projected capacitive PCAP or resistive touch screen based on the model for the effortless user control and fast response no matter the operator is working in wet environments or inclement weather. Corrosion-resistant stainless steel housing The housing made of resistant to corrosive environments high-quality SUS 316/ AISI 316 grade stainless steel. Comply with hygiene and cleanroom regulations Winmate IP69K and IP65 industrial computers entirely sealed and suitable for cleaning using hot water, high pressure, or strong disinfectants. Operator user-friendly interface Responsive touchscreen guarantee user-friendly experience for operators even when wearing gloves. For additional information, please contact Winmate’s sales at sales@winmate.com.tw.
